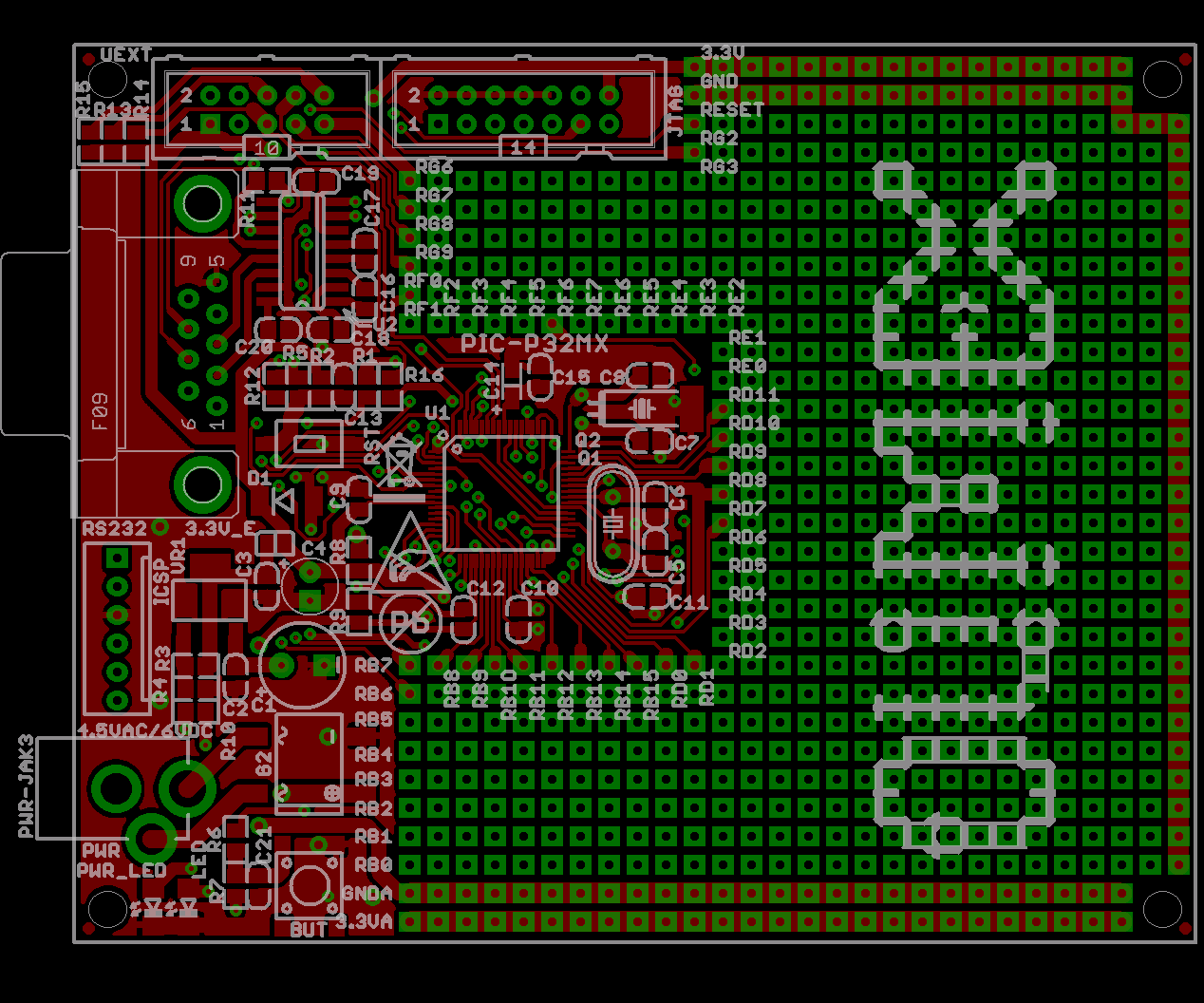

PIC-P32MX Evalboard

Produktbeschreibung

Entwicklungskit mit Microchip PIC32MX340F512 Controller, dieser besitzt 512kb Flash, 32 kb RAM und lässt sich mit bis zu 80 MHz betreiben.

The PIC32 32 bit MIPS 4K core processor from Microchip offer speed and performance at low cost. This is entry level board with PIC32MX340F512 microcontroller on it with 512 KB of Flash 32KB RAM, 80Mhz clock, UARTs, PWMs, DMAs. The board have both ICSP and JTAG connectors so it can be programmed with PIC-ICD2 or JTAG tool

FEATURES:

• PIC32MX340F512 microcontroller
• UEXT connector for other Olimex modules like MOD-MP3, MOD-NRF24Lx, MOD-SMB380, MOD-RFID125 etc.
• ICSP/ICD connector for programming with PIC-ICD2 or PIC-ICD2-POCKET.
• JTAG connector
• RD232 interface with driver
• Quartz crystalls 8 Mhz and 32768 Hz
• status LED
• user Button
• Reset button
• Power plug-in jack with diode bridge can be powered with AC or DC power supply
• 3.3V voltage regulator
• Extension slot on every uC pin
• Gird 100 mils
• GND bus
• Vcc bus
• Four mounting holes 3,3 mm (0,13")
• FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
• Dimensions 100x80 mm (3,9x3,15")

DOCUMENTS:

• PIC-P32MX.pdf - User manual
• PIC-P32MX SILKSCREEN image

HARDWARE:

• PIC-P32MX schematic
• PIC ICSP connector

• Button read demo code C source
• TIMER1 demo code C source
• TIMER1 + button + uart demo code C source
• TIMER1 + button demo code C source
• UART basic demo code C source
• UART with interrupts demo code C source
